4G TKSTAR Dog GPS Tracker TK909 Waterproof IP65 Google Track GPS For Cat Collar Voice Monitor Mini

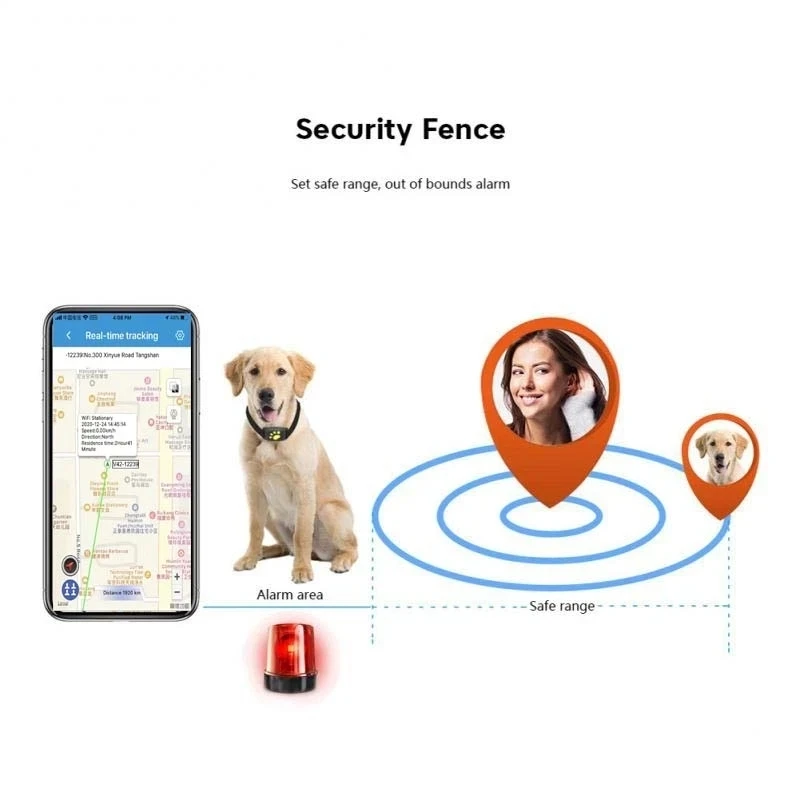

4G TK909 GPS Tracker Dim.：75mm x 29mm x 18mm(2.9"*1.1"*0.7") weight：41g Network 2G Ver. : GSM/GPRS4G Ver. : GSM/GPRS/LTE Ver.-2G：GSM:850/90/ 1800/ 1900Mhz Ver.-4GE：LTE-FDD:B1/B3/B5/B7/B8/B20GSM: 900/ 1800Mhz Ver.-4GSA：LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66GSM:850/90/ 1800/ 1900Mhz GPS sensitivity：-159dBm GPS accuracy：5m DC：5V 1.0A Charging input：Battery Chargeable：3.7V 700mAh Li-ion battery Stand by：7 days Storage Temp.：-4o°C to +85°C Operation Temp.：-20°C to +55℃ Overview: Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. The most advanced technology of GPS and GSM dual positioning. Function: 1. Long Standby Time It has built-in 3.7V 1000mAh Li-ion battery, can standby up to 400 hours. 2. Remotely Voice Monitor Send "Monitor+Password" to the device first, then the device will turn into monitor mode, now if you make call to the SIM number in the device, it will pick up your call automatically and you will can monitor the voice around the device! 3. Geo-fence Set up a geofence for the tracker device to restrict its movements within a district. The unit will send SMS to the authorized numbers when it goes out of this district 4. Overspeed Alarm This alarm works only under continuous positioning mode. When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes. 5. Shake Alarm After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked. 6. Sleep Mode * Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker * Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker. 7. History Route Playback You can track the history route of the device up to 6 months via both the web platform and APP! NOTICE: * This device just can work with 2G GSM network * Please make sure the GSM SIM card supports making calls, sending messages, GPRS network * Please make sure the GSM SIM card has sufficient balance. * Please make sure the GSM card has opened the call ID display function and turned off the call transfer. * Please insert the GSM SIM card into the device correctly. * Please use the normal SIM card for the tracker, not Micro SIM or Nano SIM: Note: SMS tracking works in GREEN-Solid mode and GREEN-Flashing mode, online tracking only works in GREEN-Flashing mode, turn on GREEN-Flashing mode by sending command “gprs123456” and set APN for the tracker2. INSTALLATION 2. 1 SIM-CARD INSTALLATION Open the rubber cover on the side of device,insert the sim card into sim card slot, if you have purchased a MICRO SIM, you will need to use the Micro SIM adapter enclosed, like this: 2.3 EXPLANATION OF PARAMETERS/CODES IN SMS MESSAGE 1. Google Maps link: This is the link to the Google map showing the position of the tracker unit. When click the link, if a map is displayed, there is GPS information for the unit. If there is no may, there is no GPS information for the tracker. 2. V:A/V: Indicates GPS signal. V:A indicates there is a GPS signal. V:V indicates there is no GPS signal. 3. 2014-07-29 06:41:43 The date and time stamp when the unit last received a GPS signal. 4. S: 007km/h: This indicates the last known speed of the unit. 5. Bat:80% The approximate amount of battery charge remaining. The value is between5%and 100%, with 100% being fully charged. 6. 4109112546: The IMEI code of tracker device. This number is used for tracking website and the app.
